Standart Servo 20Kg
Yorum Yap / Yorumları Oku
859,88 TL
Stokta 0 Adet Kaldı
Details

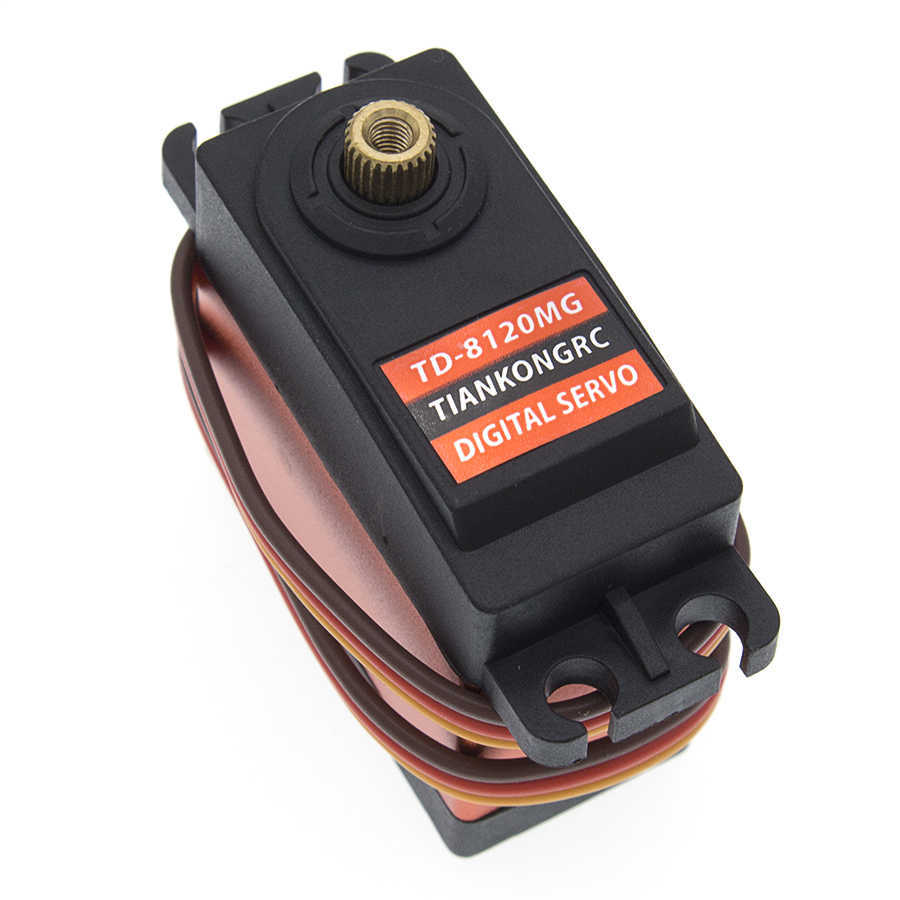

TD-8120MG 20kg 180 Torque Digital Coreless Servo
Technical Specification:
- Model: TD8120MG
- Metal gears; Double bearing; Waterproof axis
- Connector: type "S" (GND, VCC, Signal)
- Cable length: 300mm
- Operating speed: 0.18sec / 60° (4.8V without load)
- Operating speed: 0.14sec / 60° (6.0V without load)
- Torque: 18.5Kg•cm at 4.8V
- Torque: 21.8Kg•cm to 6.0V
- Deadband width: 4μs
- Operating temperature: -30° C to 60°C
- Supply voltage: 4.8 - 7.2Vcc
- Dimensions: 54.44 x 20 x 40.45 mm
- Weight: 65g
Bu ürüne ilk yorumu siz yapın!
