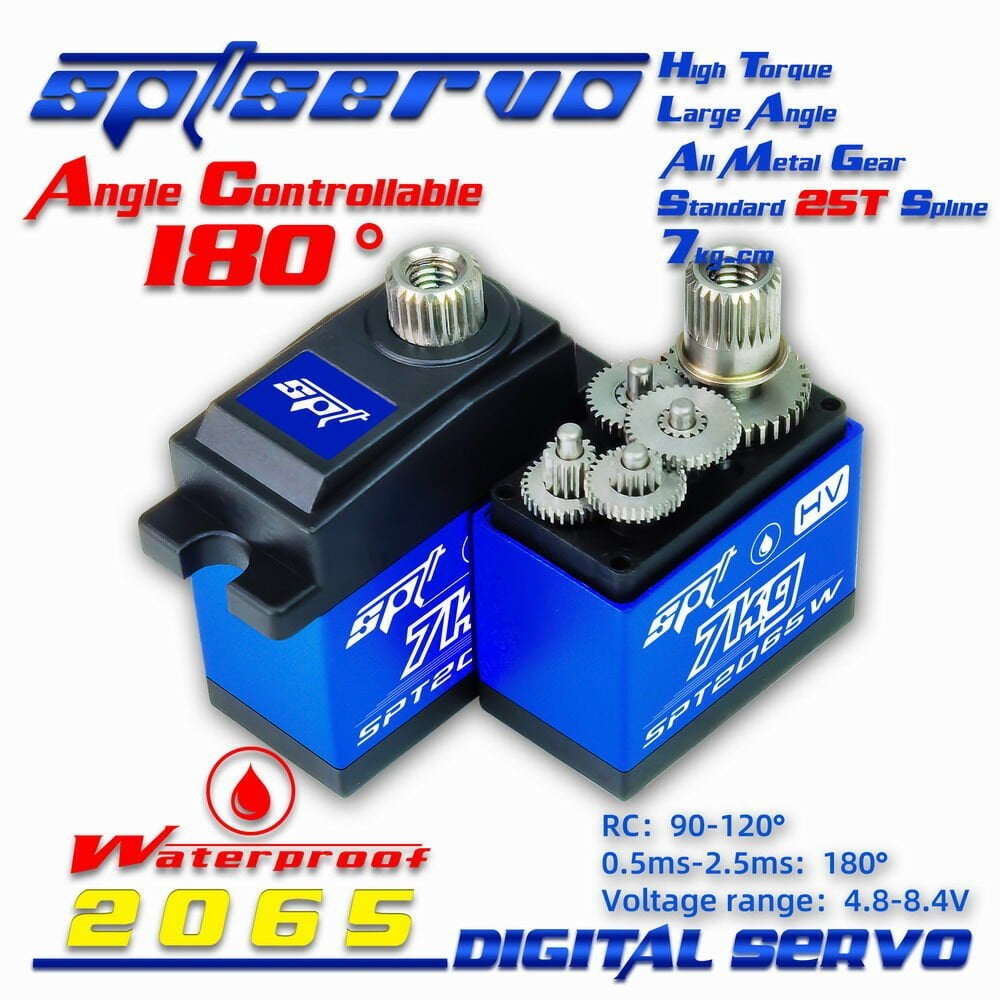

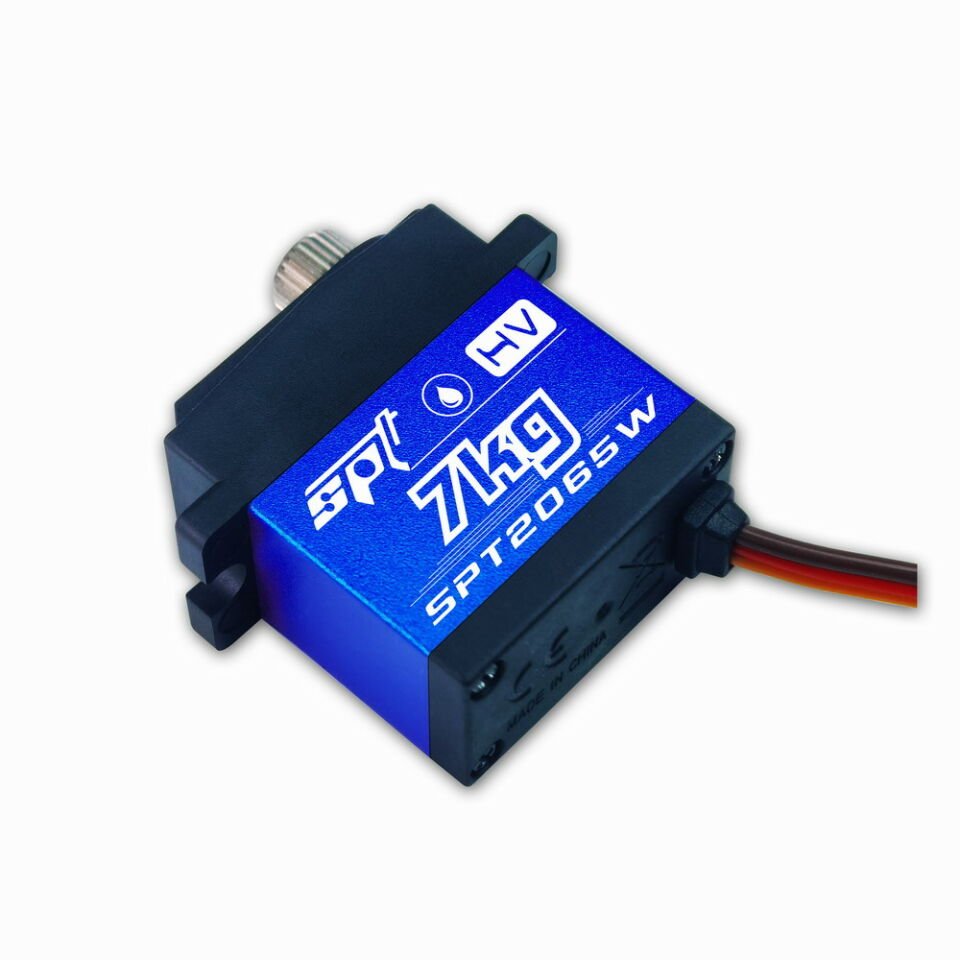

SPT 2065W HV destekli Mini Servo Traxxas TRX Serisi Vites-Diferansiyel Servoları için Kullanıma uygundur, Ayrıca TRX-4M 1/18 Crawler için Yön Servosu olarak Kullanıma Uygundur.
Brand: SPT Servo
Potentiometer:Mechanics
Motor:Core
Voltage Range:4.8V/6.0V/8.4V
Neutral Point:1500μs
Signal Frequency:330Hz
PWM Voltage:3.3V-5.0V
Feedback Angle: No
Operating Temperature:-10℃-50℃
Cycle:20ms
Dead band:2μs
Default Direction:CCW
Yes / no Lock:No Lock
Remote control Angle:90°
500-2500μs Angle:180° / PWM
Quiescent Current:50mA
Rated Current:800mA
Blocking Current:2.0A

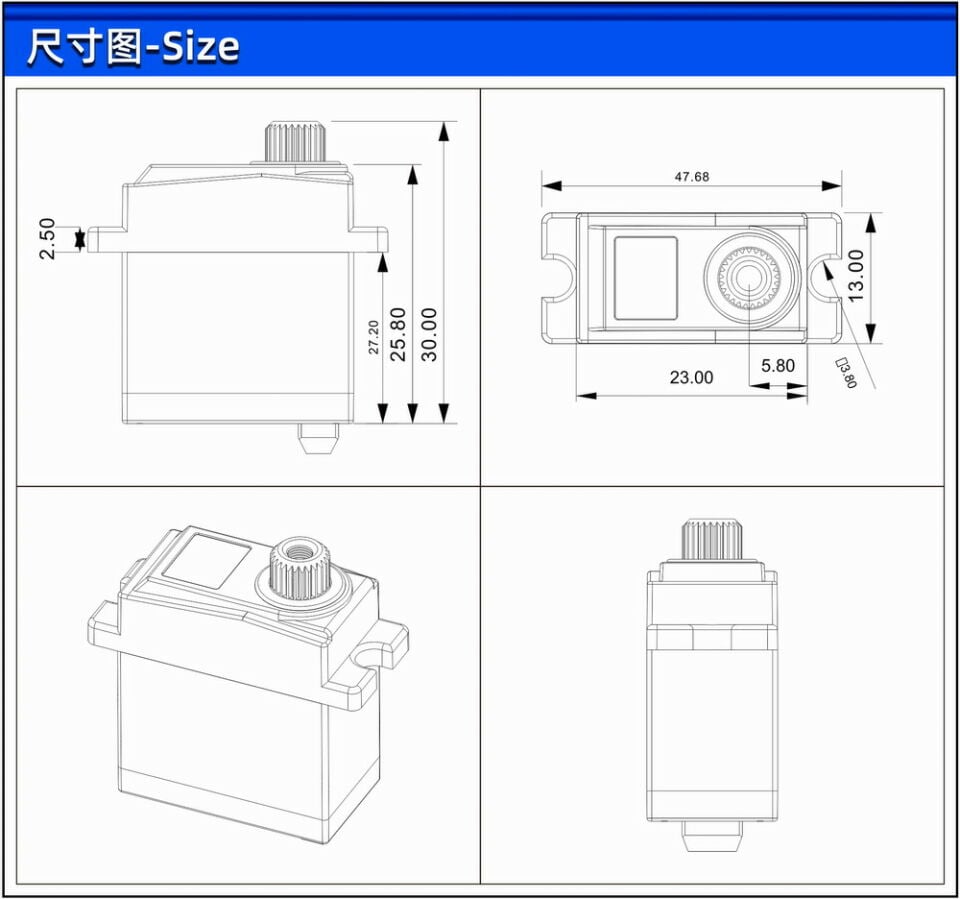

Weight / Dimensions:20g / 23*13*25.8mm
Output Gear:Futaba 25T
Gear Material: All Metal Gear
Shell Material:Half Aluminum Shell
Bearing:1BB
Connector Wire Length:300MM
line Definition:Brown-/Red+/Orange s
Operating Speed: 4.8V/ 0.11''/60° 6.0V/ 0.09''/60° 8.4V/ 0.06''/60°
Stall Torque:4.8V/ 4.8 kg.cm 6.0V/ 6.0 kg.cm 8.4V/ 7.0 kg.cm
